Tooling Development
In-house mold and die development covering drawing review, tooling design and validation ahead of stamping production.
Request a Quote
Overview
Tooling development is the process of translating a customer's part drawing into a production-ready stamping die. It covers drawing review, feasibility feedback, die design and tooling validation before a part moves into stamping production. This stage is where dimensional tolerances, forming sequence and material behavior are worked out, so downstream stamping, deep drawing and assembly steps run consistently at volume. Tooling development is typically required for new part numbers and design changes, and precedes first-article inspection.
Advantages
- Drawing feasibility review before tooling commitment
- Coordinated tooling design and part engineering
- First-article validation prior to production release
- Supports both new part development and design revisions
Supported Materials
- Carbon steel
- Stainless steel
- Brass
- Aluminum
- Other metals on request

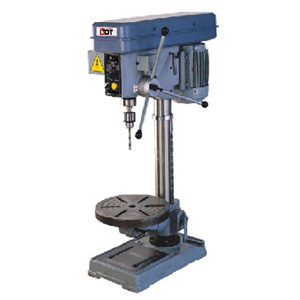

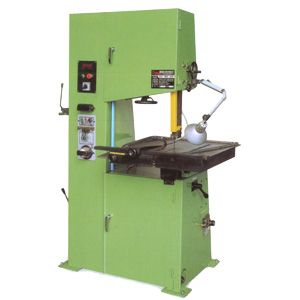

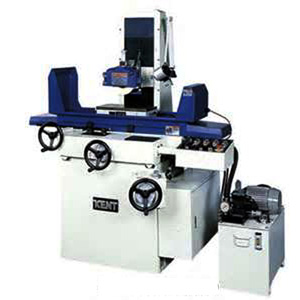

Equipment & Process Range
Tooling capacity, press tonnage and specific die configurations are confirmed per project based on part geometry and drawing requirements.
Specific equipment models, tonnage and unit counts are confirmed by engineering per project rather than published as general figures.
Workflow
Drawing Review
Part drawings and specifications are reviewed for stamping feasibility and manufacturability.
Die Design
Tooling is designed to match the required forming sequence, tolerances and production volume.
Tooling Build & Trial
Dies are built and trial-run to confirm dimensional accuracy and process stability.
First-Article Validation
Sample parts are measured against drawing specifications before production release.
Quality Controls
- Dimensional inspection against drawing tolerances
- First-article inspection reports
- Process documentation for repeat orders
Related Products
Lock Components
Precision-machined and stamped components for lock and security hardware assemblies.
View all
Metal Stamping Parts
Progressive die and deep-drawn stamped parts across a range of metals and thicknesses.
View all
Custom OEM Parts
Drawing-based OEM/ODM parts developed from tooling through to assembly.
View allExample products using this capability: Custom Metal Chassis Enclosure, Custom Molded Enclosure Base, Lock Cylinder & Cam
Applications
- New part development
- Design changes and engineering revisions
- OEM/ODM project onboarding
Frequently Asked Questions
What file formats are accepted for a quote submission?
PDF, DWG, DXF, STEP, JPG and PNG files are accepted. Multiple files should be uploaded individually rather than as a compressed archive; each file must be 20MB or smaller.
What information do I need to provide for a metal stamping quote?
To request a quote, provide your part drawing (PDF, DWG, DXF or STEP), target quantity, material preference and any surface finish requirement. Submitting a drawing lets engineering confirm feasibility, tolerances and lead time for your specific part.
Can YO JYI develop tooling for a new part?
Yes. Tooling development covers drawing review, die design and first-article validation for new part numbers or design changes, ahead of stamping production.
